Quality Assurance (QA) is done after every BIM modeling project for each system and is used to eliminate errors. BIM QA/QC (Quality Assurance/Quality Control) refers to the checking of the BIM model if various BIM standards have complied. The 3D BIM model is inspected for clashes, improper naming, and other inconsistencies. The output you get after BIM QA/QC process is a clean ready to use BIM model without any inconsistencies, with all systems coordinated.

Why BIM QA/QC Checklist?

The BIM QA/QC checklist is nothing more than a tool that will assist you in creating an organized process, helping you to maintain repetitious activities, fostering a good design habit within the project team, and assisting team members in memorizing task sequences in a Quality Assurance process, among other things.

For your convenience, we have provided you with a simplified BIM QA/QC checklist that you can use to streamline your BIM QA/QC process. Depending on your project, the checklist may alter slightly from the sample below. Always remember not to passively follow someone else’s checklist, and to tailor your BIM QA/QC processes to the specifics of your project rather than the other way around.

📌BIM QA/QC Checklist

BIM QA or QC Checklist

📌 General Check

  • Visual check of the model
  • Placement of origin point
  • Naming of Project, Site, and Building
  • Naming of storeys of the building
  • Mapping of IFC class for all objects in the model
  • Tagging all objects, and correct use of LOD parameter
  • Naming of rooms in the model

📌 Space Check

  • Checking the area of space within the error range
  • Checking each floor space area
  • The space program’s space number and name are being verified
  • Checking of space number unique identifier in BIM data

📌 Design Check

  • Match architectural property lines with civil property lines
  • Match architectural building dimensions with structural
  • Definition of the specific types and required properties like object’s material

📌 MEP Check

  • MEP plan matches the architectural and structural plan
  • All equipment shown on the plans
  • All equipment shown on the schedules
  • MEP clash coordination

📌 Construction Check

  • Clash coordination between different building objects like beams, columns, and beams
  • Clash coordination between the same kind of building objects

📌 Model Revision

  • Eliminate errors and clash issues
  • Assure that all standards are followed
  • Ensure enough geometric elements, the correct position, and functionality
  • Confirm if the client’s requirements are met
  • Delete unnecessary views and plans
  • Delete unnecessary groups
  • Verify work sets
  • Purge file
  • Audit file

BIM QA/QC Process: How does Quality Assurance / Quality Control (QA/QC) work?



  1. General Check

The general definitions of the 3D BIM model are confirmed by the general quality check. The requirements include adequate accuracy and naming of components.

2. Space Check

Space check criteria include reviewing space components, names, areas, and clashes between spaces in the BIM for the building’s space programming.

3. Design Check

Design check criteria are related to the checking of BIM data quality generated in the architectural design process.

4. MEP Check

The necessary model requirements for the MEP (Mechanical, Electrical, and Plumbing) are checked for clashes and if they are represented in drawings and schedules.

5. Construction Check

Construction check criteria are used to assess the structural quality of BIM data. Clash checking between construction objects like columns, beams, slabs, etc. is one of these requirements.

6. Model Revision

When checking the quality of a 3D model, a checklist is used. Revit section views can be used to check for any deviations in the design. In this way, clash detection and coordination between trades are simplified and can be used to measure discrepancies and the 3D BIM model is revised accordingly.

📌BIM QA/QC using Solibri Model Checker (SMC) Software

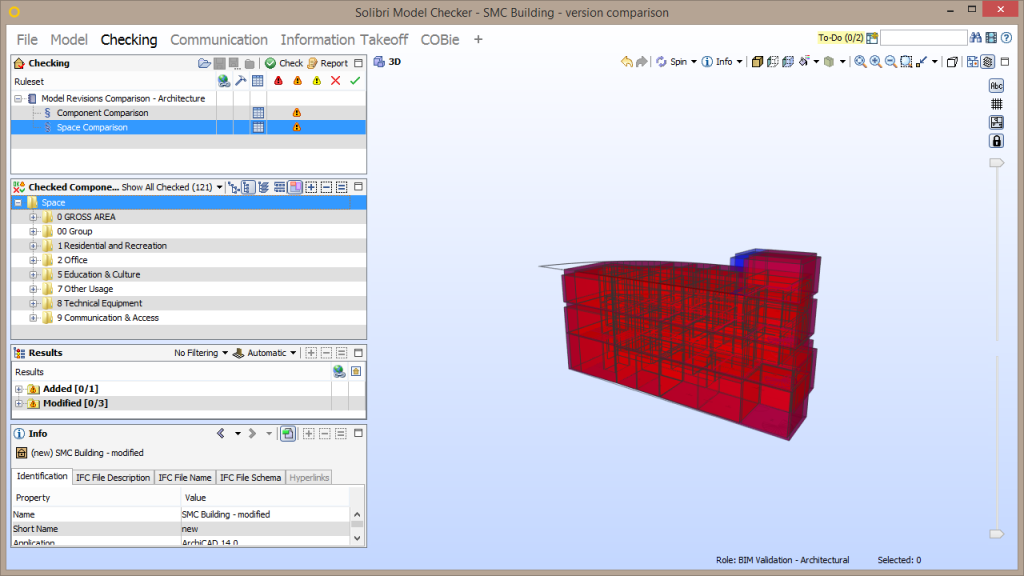

Solibri Model Checker (SMC) is software that assesses BIM models to check their quality and to find any defects. SMC simplifies and expedites the process of BIM QA/QC. Running a building’s 3D BIM model through SMC before construction helps in exposing hidden flaws and weaknesses in the design. SMC selects the components and verifies that the BIM model complies with the applicable building codes and organizational best practices.

📌Benefits of BIM QA/QC

  • Design Model Validation: By ensuring that the 3D BIM model is perfect and can be referenced while construction makes the QA/QC analysis an easy task.
  • Risk Mitigation: The future risk associated with a 3D BIM Model which is not quality verified including unforeseen design clashes can be fixed beforehand in the model.
  • Cost Control: Accurate clash free 3D BIM models limit the wastage of materials and thus save the cost of materials.
  • Saves Company Reputation: Errors in the BIM model can affect the company’s reputation. Doing QA/QC of the BIM model before providing it for construction is important.



Conclusion

Building Information Modelling (BIM) is now inevitable in the architecture, engineering, and construction (AEC) industry. Using BIM Modeling, it is possible to integrate Revit BIM models from a wide range of disciplines into a single data model. Examples of such disciplines include architecture, structural engineering, and MEP engineering. By using a checklist for BIM Quality Assurance and Quality Control a clash free and coordinated BIM model can be created which can be used for the building construction process. Construction contractors employ the exact data provided by these models to create the structure, hence Quality Assurance is critical within the AEC business. Cost, scheduling, and even company reputation all be impacted by project errors.
