Light Gauge Steel Framing Design & Detailing

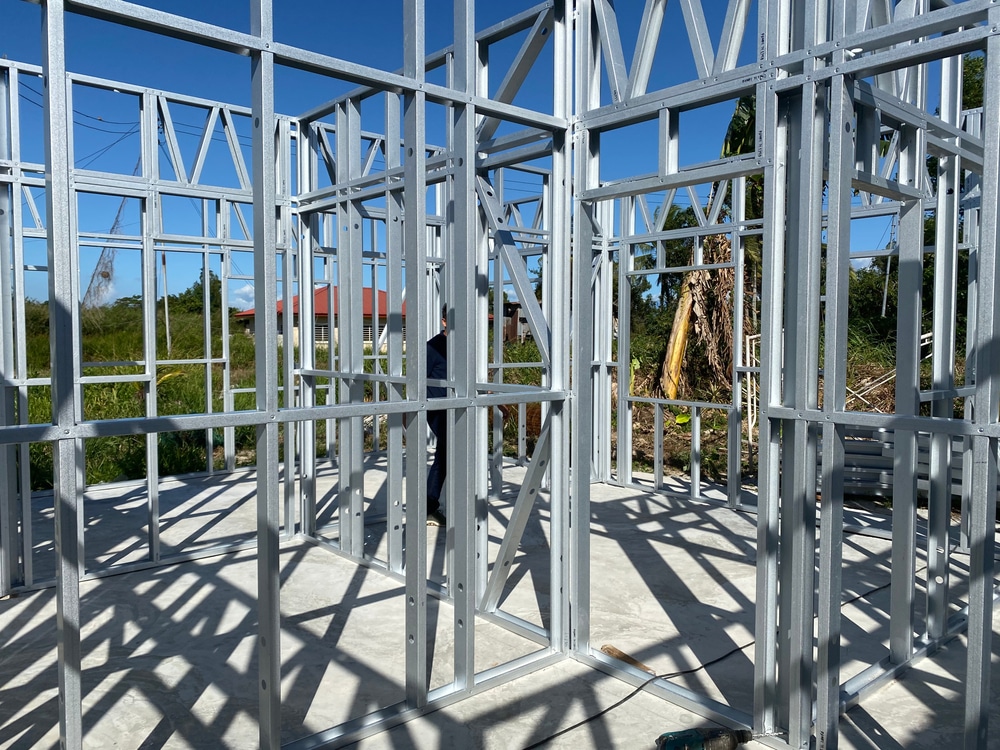

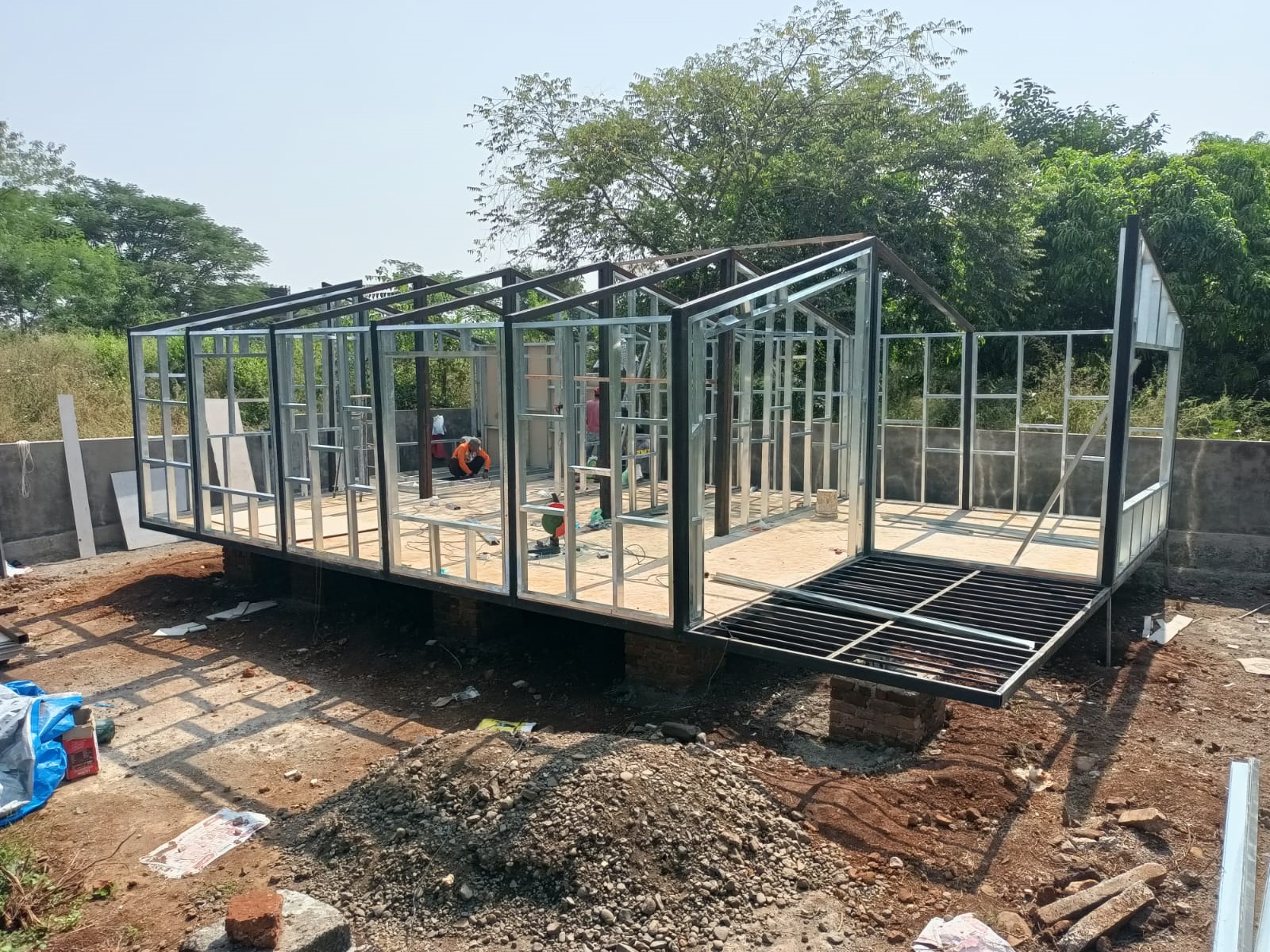

Light gauge steel framing (LGS) is a type of construction that uses thin, cold-formed steel sheets to create the structural frame of a building. LGS is becoming increasingly popular in residential and commercial construction due to its many benefits, including:

• Strength: LGS is very strong for its weight, making it ideal for buildings in seismically active areas.
• Durability: LGS is corrosion-resistant and can withstand extreme weather conditions, making it a good choice for buildings in coastal or other harsh environments.
• Fire resistance: LGS is non-combustible and will not contribute to the spread of fire.
• Energy efficiency: LGS can help to reduce energy costs by providing a tight, well-insulated envelope for buildings.
• Sustainability: LGS is a recyclable material that can be reused or recycled at the end of its useful life.
• Speed of construction: LGS can be assembled quickly and easily, which can help to reduce construction costs.
• Accuracy: LGS is manufactured to exacting standards, which helps to ensure that buildings are built to code and meet all structural requirements.

In addition to these benefits, LGS is also a versatile material that can be used to create a variety of architectural styles. LGS can be used to build everything from single-family homes to high-rise buildings, and it can be used to create both traditional and modern designs.

• Shop Drawings: These are detailed drawings that show the exact construction of the building, including all dimensions, materials, and finishes. They are used by the contractor to build the building according to the architect’s plans.
• Calculations: These are calculations that verify the structural and mechanical integrity of the building. They are used by the engineer to ensure that the building is safe and meets all applicable codes.
• Construction Specifications: These are written documents that describe the materials, finishes, and construction methods to be used in the building. They are used by the contractor to bid on and build the project.
• Approvals: These are documents that show that all required approvals have been obtained for the project, such as building permits, zoning variances, and environmental permits.
• Warranties: These are documents that guarantee the quality of the materials and workmanship used in the construction of the building.

Tejjy Inc. Light Gauge Shop Drawing & Calculation Packages are comprehensive and provide all the information needed to build a safe and compliant building. They are a valuable resource for architects, engineers, contractors, and owners.
