Client Summary

Commercial laser scanning and MEP coordination project: Baltimore Gas and Electric Company building renovation

Project summary

The project at 29 W. Lexington Street in Baltimore, MD, aimed to modernize and enhance utility systems while preserving the structure’s historic significance. BLK 360 3D Laser Scanner, was used to conduct 32 scans, resulting in a comprehensive Level of Development 500 MEPF Building Information Modeling (BIM) model. This model ensured accurate site coordination and construction alignment, facilitating the renovation of the client’s building while respecting the structure’s historical significance.

Location: 29 W. Lexington Street, Baltimore, MD
Area Scanned: 10,000 sq ft, BGE RAND, 16th Floor
Existing site conditions: external wall finished, MEP, and ducting exposed.

Project Scope

Objective:

Modernize and enhance utility systems while preserving their historic significance.

Technology Utilized:

  • 3D Laser Scanner: BLK 360
  • Scanning conditions: low light
  • Total Scans: 32
  • Scan Accuracy: Medium with HDR Photos
  • Time per scan: 4 minutes, 20 seconds



Data Extraction Platform

  • Matterport

Extracted Data

  • Laser-scanned to an RCP file
  • HDR Images

Services Provided

  • Comprehensive LOD 500 MEPF BIM Model
  • Shop Drawings for Permits
  • Coordination design for MEPF (HVAC, Piping, Electrical, and Fire Protection) Systems
  • Clash Detection
  • Family Creation with Parametric Attributes
  • Project Standardization

Outcome

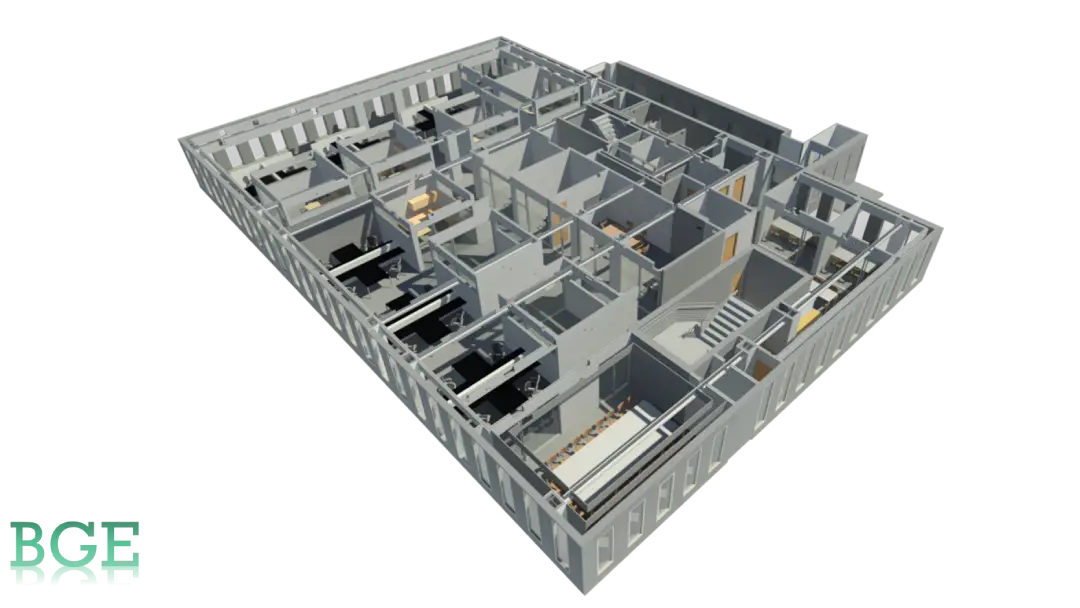

Transformed scanned data into a detailed BIM model, ensuring accurate site coordination and construction alignment.

Scan Details

Location Scanned

29 W. Lexington Street, Baltimore, MD BGE RAND, 16TH FLOOR

Lighting Conditions

Low Light

Total Scans

32

Scan Accuracy

Medium with HDR Photos

Time taken per scan

4 minutes, 20 seconds

Data Extraction Platform

Platform used

Matterport

Extracted Data

Laser-scanned RCP file + HDR images

Project Result:

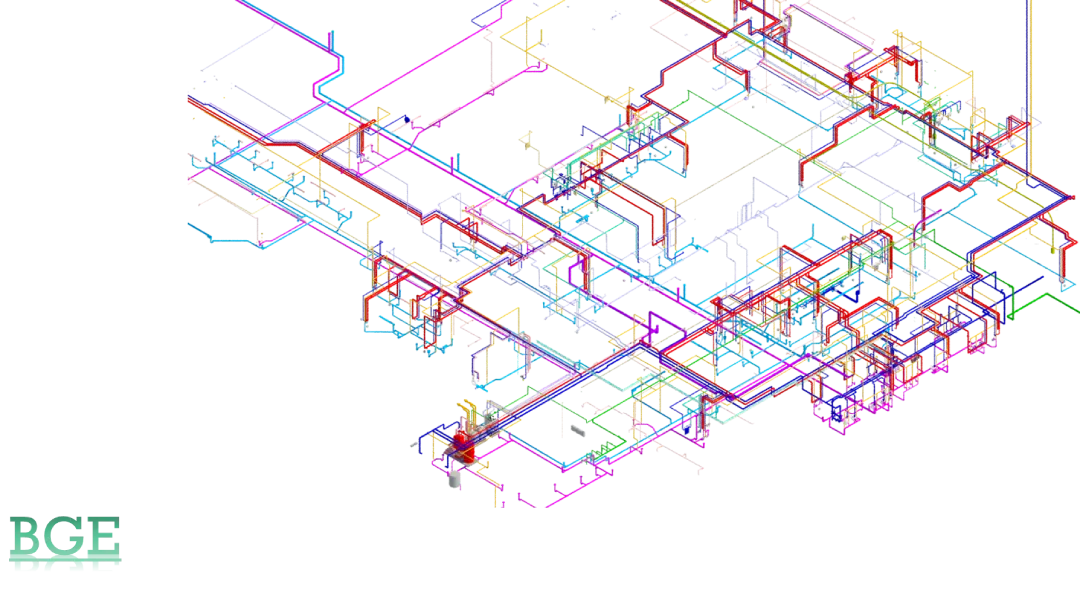

We achieved a comprehensive BIM model. Further incorporating detailed MEP systems and ensuring precise coordination for the renovation of the client’s building.

Description

PROJECT NAME
BGE Baltimore Gas & Electric Building
LOCATION
Baltimore, Maryland, USA
AREA
120000 sq.ft
COMPLETED
2021
LOD
500
SERVICES
MEPF Modelling, coordination and shop drawings from point cloud data (Scan to BIM)
