BENNETT ELEMENTRY SCHOOL RENOVATION AND ADDITIONAL BIM SERVICES

  • BENNETT ELEMENTRY SCHOOL RENOVATION AND ADDITIONAL BIM SERVICES

Challenges

Scope and Realisations

Our main responsibilities are:

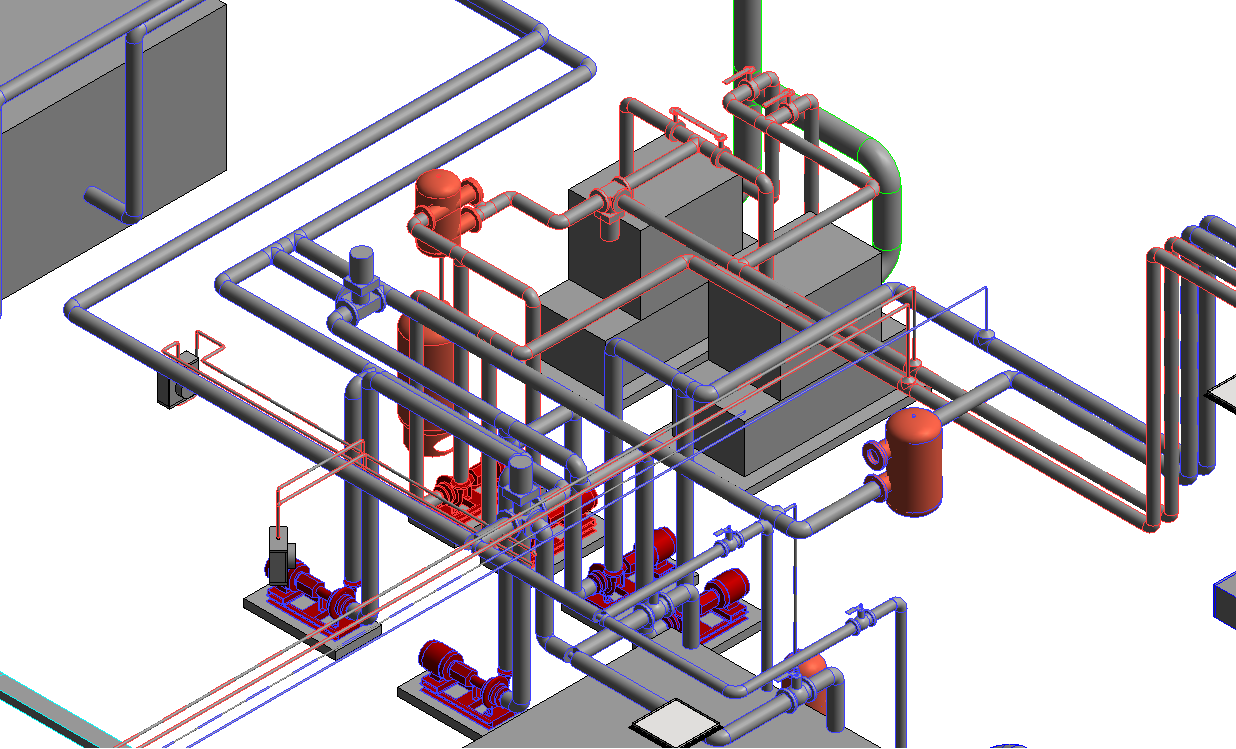

  • To create mechanical HVAC, mechanical piping, and mechanical room infrastructure models for site coordination and construction inline for As-built renovation.
  • Quantity take-off from the generated BIM model.
  • BIM Execution Plan Implementation.
  • Closely working with the BIM engineers to obtain an accurate model.
  • Coordination Drawing (LOD 300).
  • BIM Coordination (Architectural, Structure, MEP).
  • Clash detection.
  • Mechanical room Coordination.

Description

PROJECT NAME
Bennett Elementary School
LOCATION
Virginia, USA
AREA
Header
COMPLETED
2020
LOD
300
SERVICES
MEP BIM model, MEP Coordination, Clash Detection
